M3 pickups ring size

[ludobag]

A gentle member could answer me?

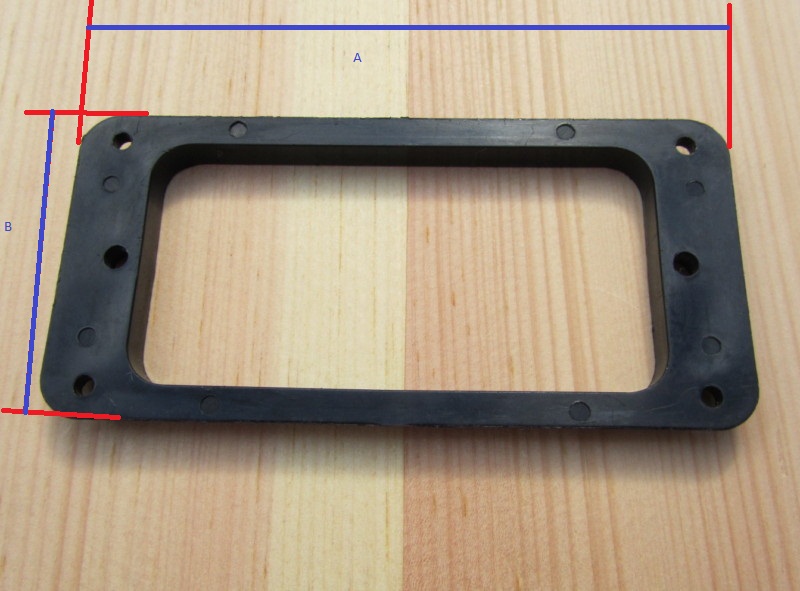

i need this dimensions to place my guard and the neck pickups to the end of neck (it will avoid my neck go behind the pups )
A=?
B=?
for the radius i will wait my pups to see it but with the 2 other dimensions i can beguin my template for body and neck


thanks by advance

[motiersbad]

Hi ludobag,

measured from an ed elliot border:

A = 10,1 cm
B = 4,8 cm

Best regards
Phil

[ludobag]

thanks a lot

[oipunkguy]

the one m3 pickup ring i have is slightly less wide then my mosrite originals. this may because i think the earliest mosrite pickup covers and rings were made this way. but then again it could have be due to shrinkage after the ring was made. not sure which.

[ludobag]

thanks i have recept my pups since
faster than i expect in fact
