style" mosrite of burgundya"

[ludobag]

thanks Mel

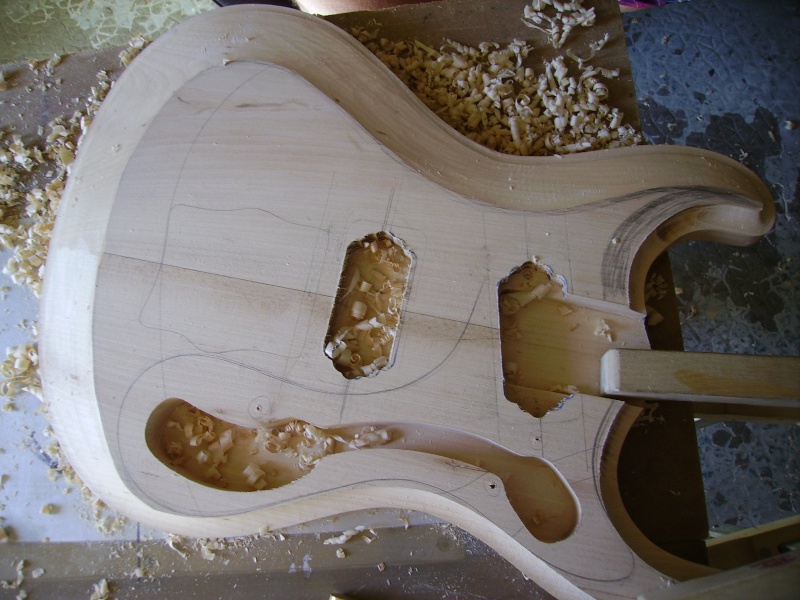

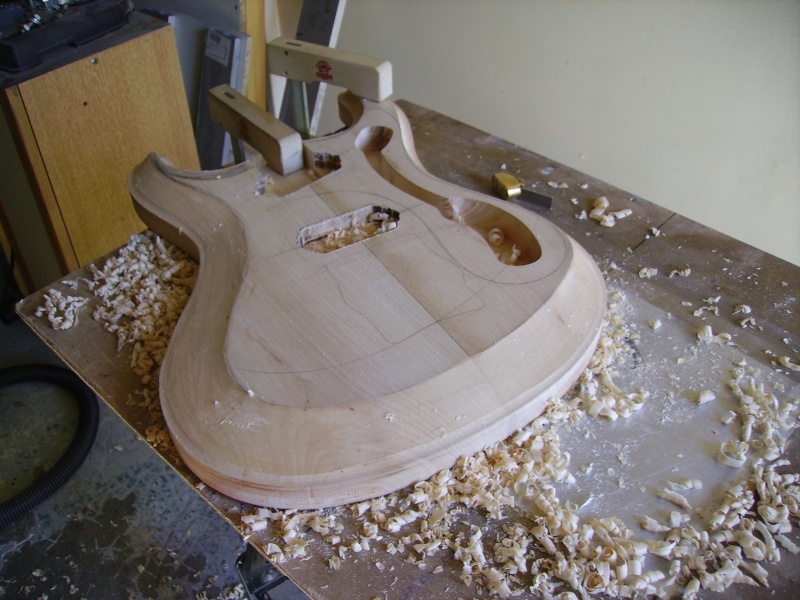

one hour after



i love my little plane

[ludobag]

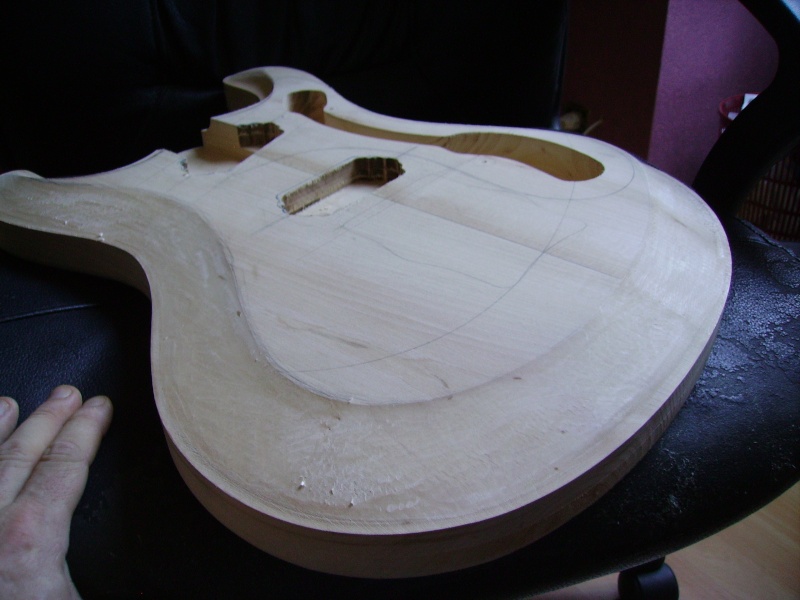

time for sanding paper

[juan_10]

I definitely want to see more fingers ! Sanding I feel competent to do , the rest has outstripped me so far , especially the aluminium work .. it looked brilliant once it was shiny ...

good stuff .. I'll be here till the sanding of the final finish too so I FEEL for those sore digits .!

[ludobag]

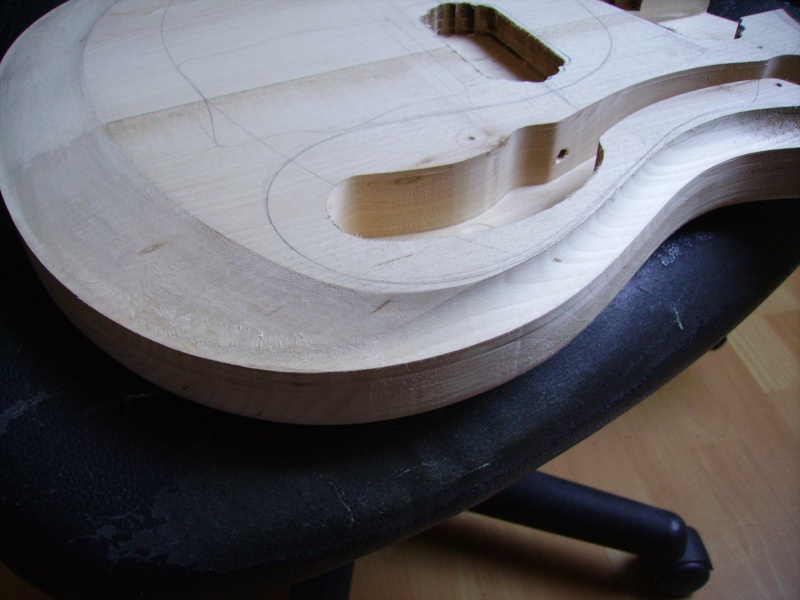

after sanding i think i forget something the recurve now it look like EFElliott * carve but on his one it have binding and after resee it there is a recurve too
(*ps thanks for your thread it is a great inspiration even if sometime i can't do like you cause with me it don't work )

[ludobag]

i think i have made all the error possible in one build (i hope it is the last )
then i have rerouted the german 3mm deeper now i am at 15mm before i was at 12 mm (too small hopefully)



now i will use only my sand paper by hand my little plane is too much hungry
i will make one like this , i will try to avoid oversanding cause i can't make a new border

[ludobag]

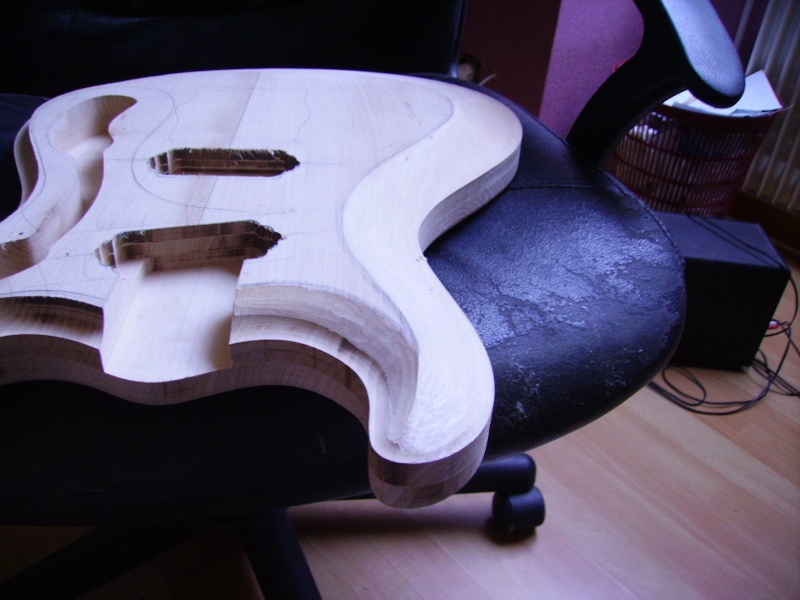

help i need german carve expert ,please the Grissom of german carve
i don't know if i am far or near then i have stop for today (moreover it is night)
what do you think?
i have wet the wood cause if not it is not visible
all suggestion welcome cause in fact i beguin to be lost

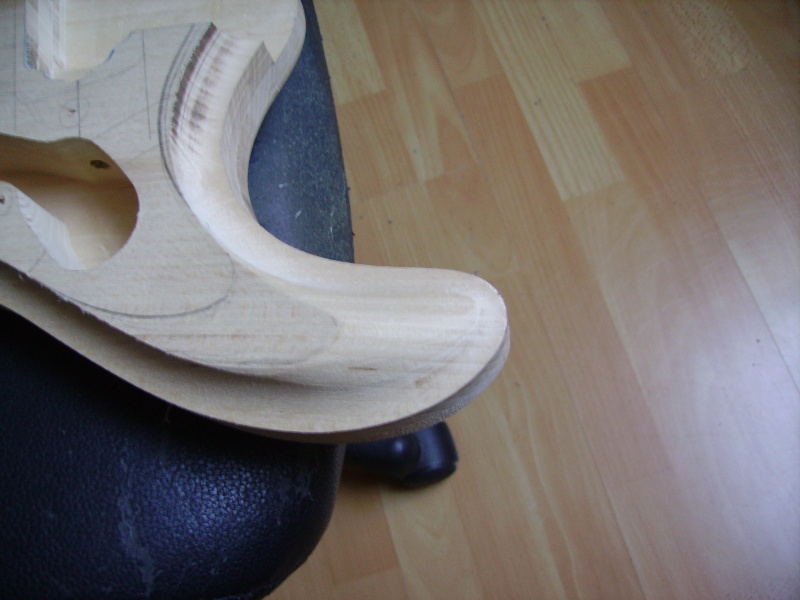

on pics i see the rear bout need to be more regulary on the upper side where it meet the top
tanks by advance

[ludobag]

i continu of thinking of the german carve but today too hot then i made other things
neck angle and neck attach



and for fun

rest to do
carve german ,carve of neck ,string guide ,pickguard some holes for trem ,and after finishing

[TerryTNM]

It's coming along nicely, may I ask what radius bit you used to set the starting point? The cutouts apppear that the radius is to small. I use a fairly large cutter that cuts a 1" radius. Don't know what that is in mm or cm. I know that the off the shelf cutters here are a maximum of 3/4". So, I need to go to the commercial suppliers for that. I've never made a Ventures type guitar before. These are just my observations. Your finger plane can certainly blend the German carve to your starting point radius. I use a variety of round and flat sanding blocks and scrapers to finish off the carve. But it is quite difficult to make the radius larger by hand. -Terry

[MWaldorf]

It looks to me as if the later Ventures models were carved using an ogee bit. I'll have to look again, but I'm pretty sure that in one of the videos of Semie's shop in the 1980s he's holding one, and that's what he used on the VIIIs.


1984 VIII, with what looks to me like an ogee carve:

[ludobag]

thanks i go to scource and look how must do german curve now i understand better
http://www.euroguitars.co.uk/viewtopic.php?f=6&t=98
http://www.tatadoheaven.com/Ric/germancarve.html
then now i see more
i will use a scraper like this
0655 Large, French curve
http://www.stewmac.com/shop/Tools/Scrap ... lades.html
cause my router bit is only 1/2 inch
it will be long
i can't use the same bit cause first i think it is hard to find or special order ,2 the cost of a bit like this 3 too big for my taste really risky for fingers

today no much times then i do this

and beguin the string guide

need few mm to sand again and polishing ect....

normally the router work is finish
