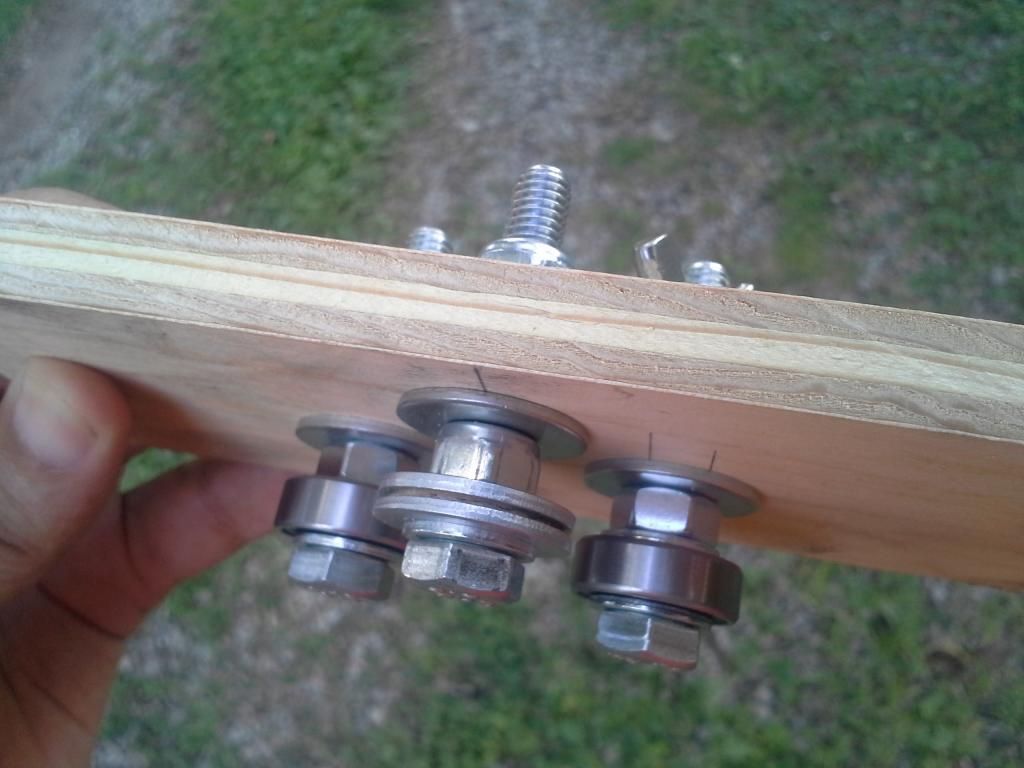

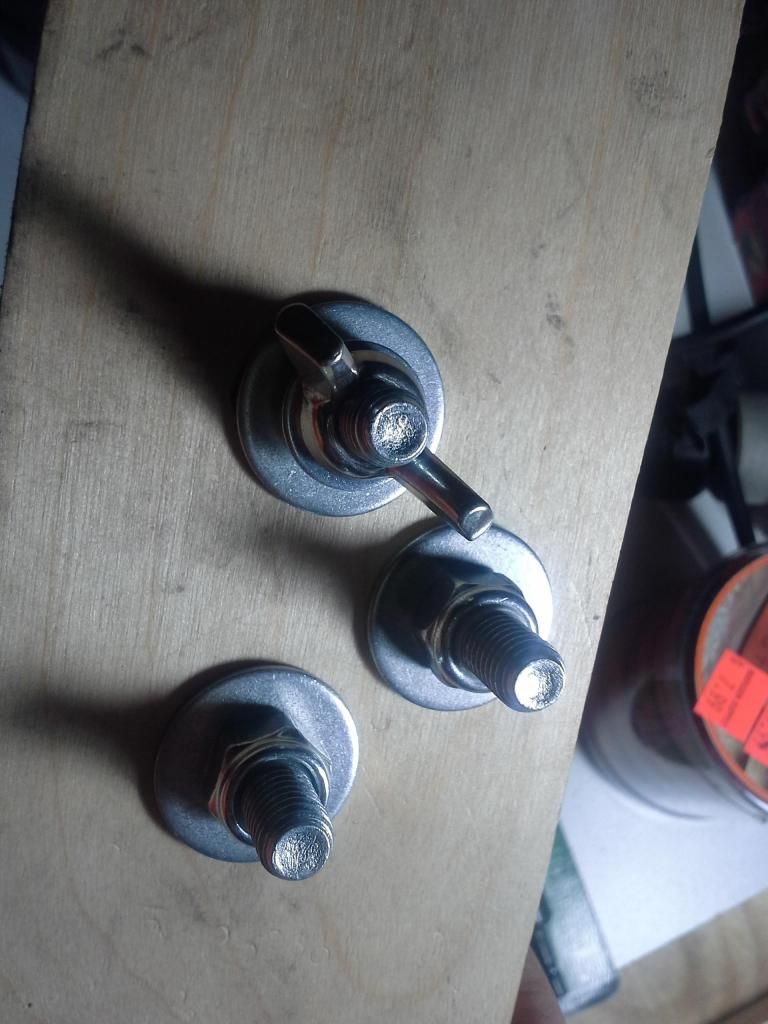

Out of skateboard bearings, lock washers, 2 Fender washers, and 8 mm bolts.

$125 you gotta be kidding StewMac

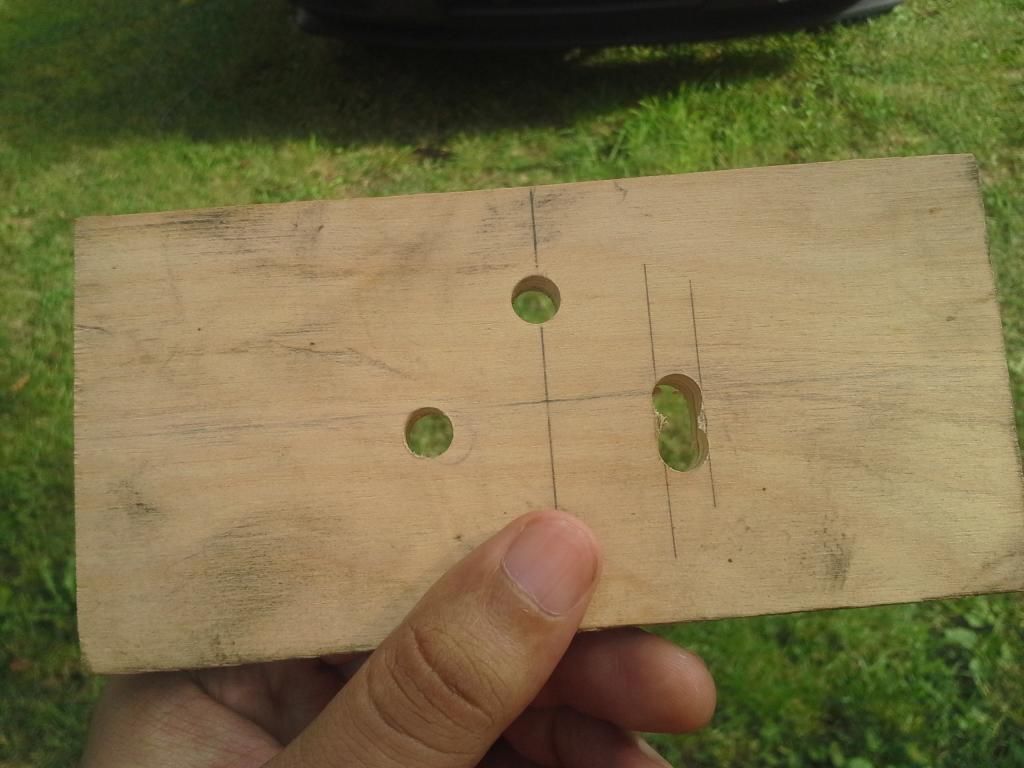

The slotted hole was cleaned up with the router. With a wing nut, I can adjust the radius of the bend.

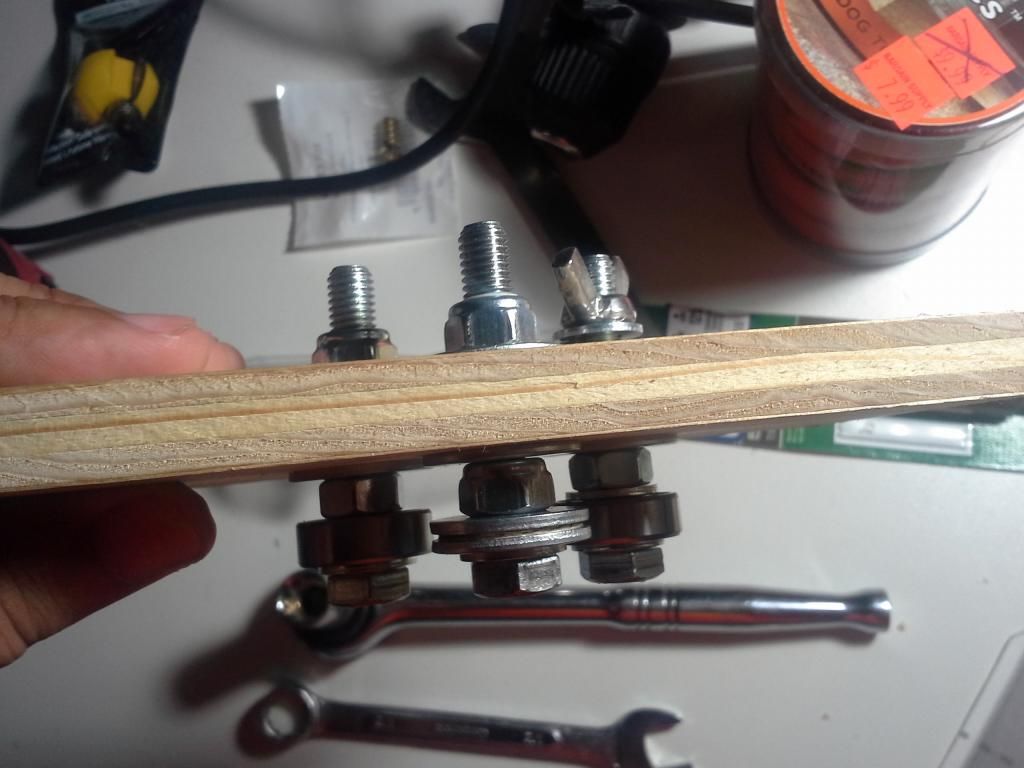

cardboard in between the washers creates a channel for the fret tang to ride along


My tri-flow lubricant also showed up, now the Tuning Machine heads turn smooth as silk 8-)
"If the women don't find you handsome, they should at least find you handy."- a wise man

User avatar
cmiller0034
Top Producer
Posts: 219
Joined: Tue Oct 15, 2013 1:44 pm
Location: Louisville, Ky
Contact:

Re: Star Swirl *** 1st build

Postby cmiller0034 » Mon Jul 28, 2014 9:41 pm

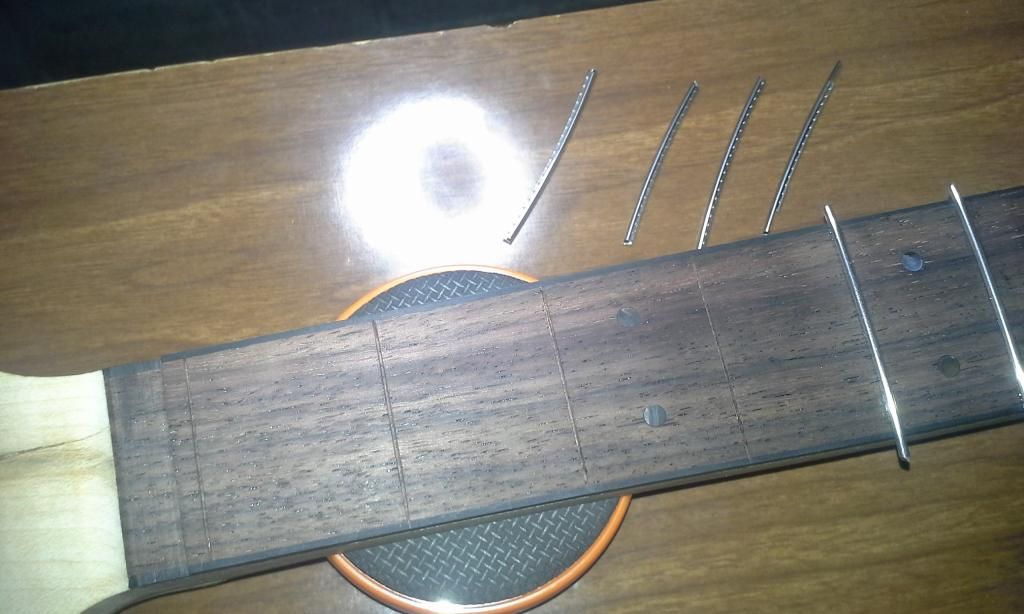

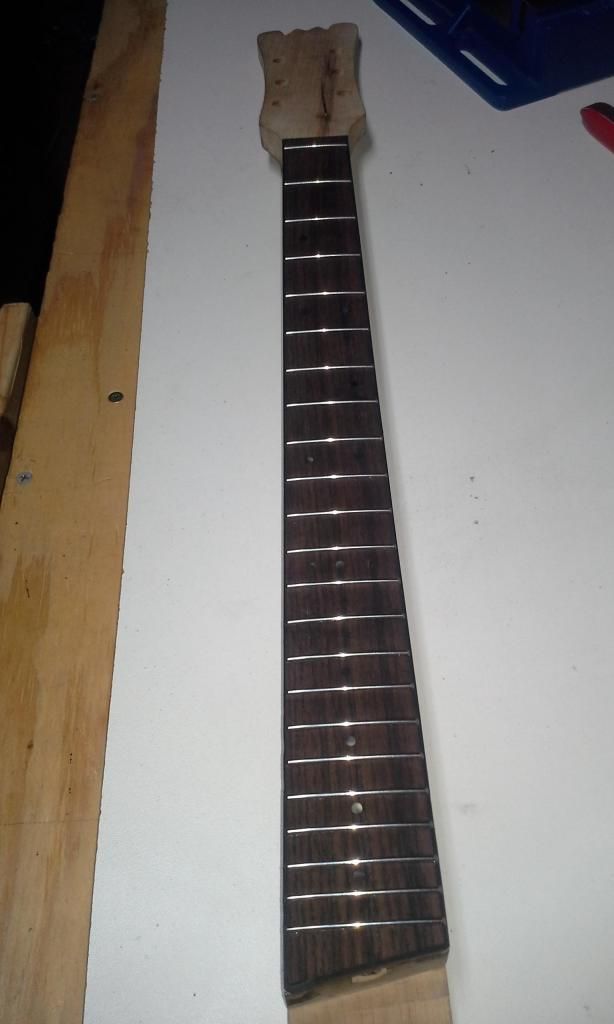

A little Fret TREBLE

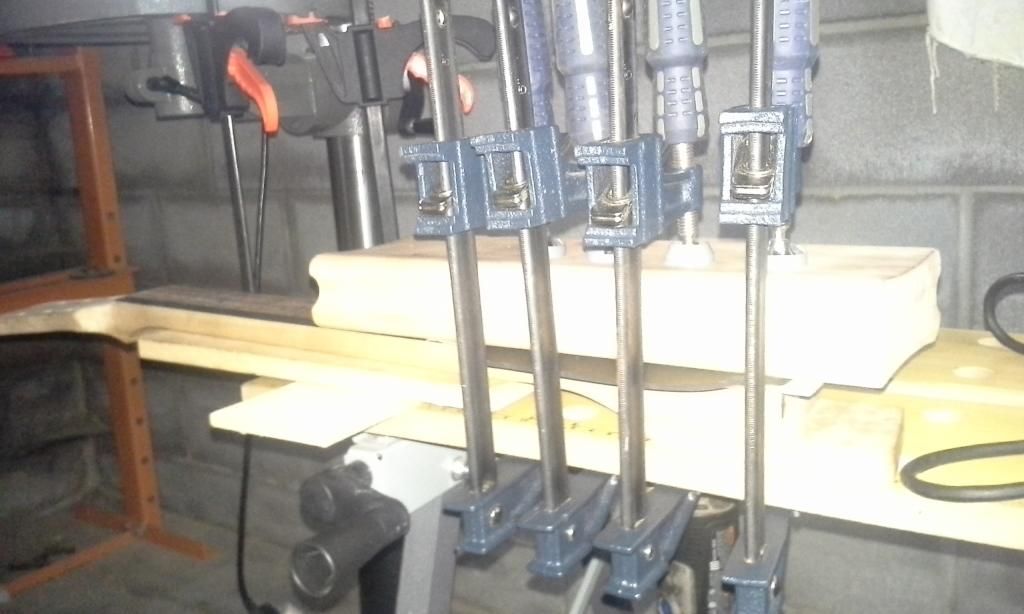

Well I have been a busy busy bee. Here there and everywhere on this guitar. My plans for the body have changed Drastically. While I wait for Hide glue to dry, thought I'd make and update.

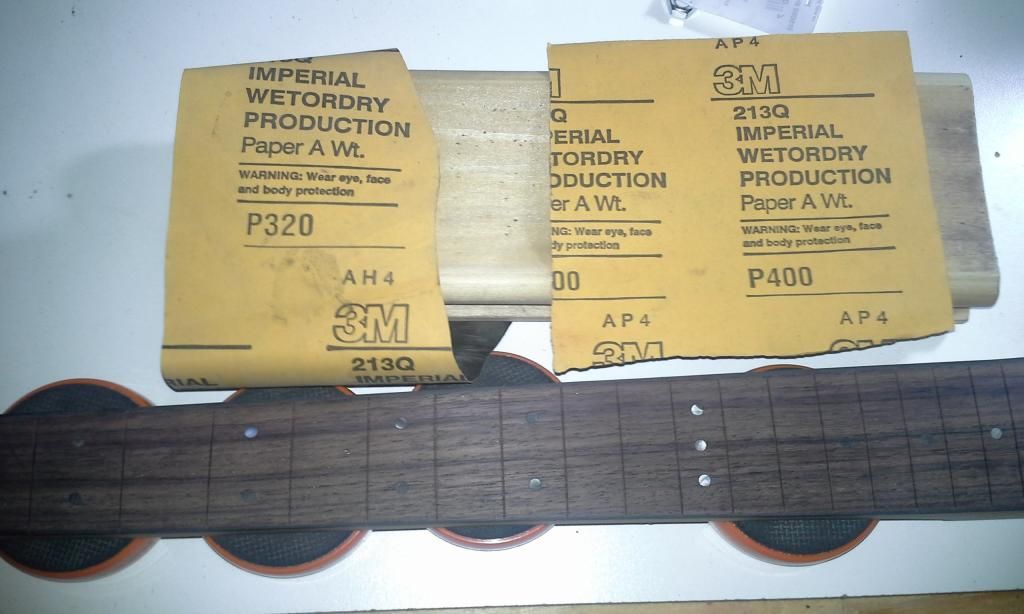

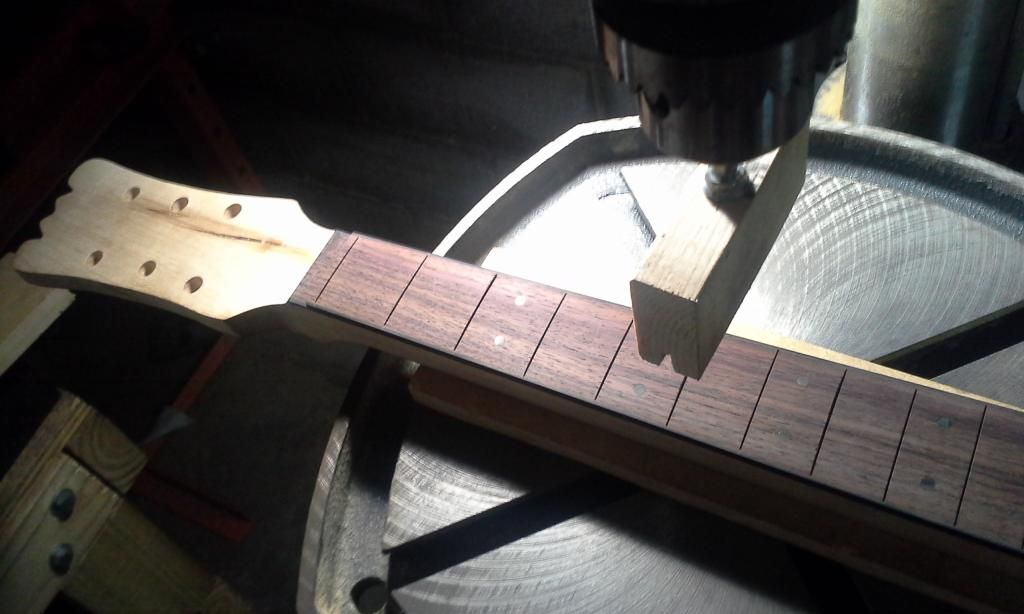

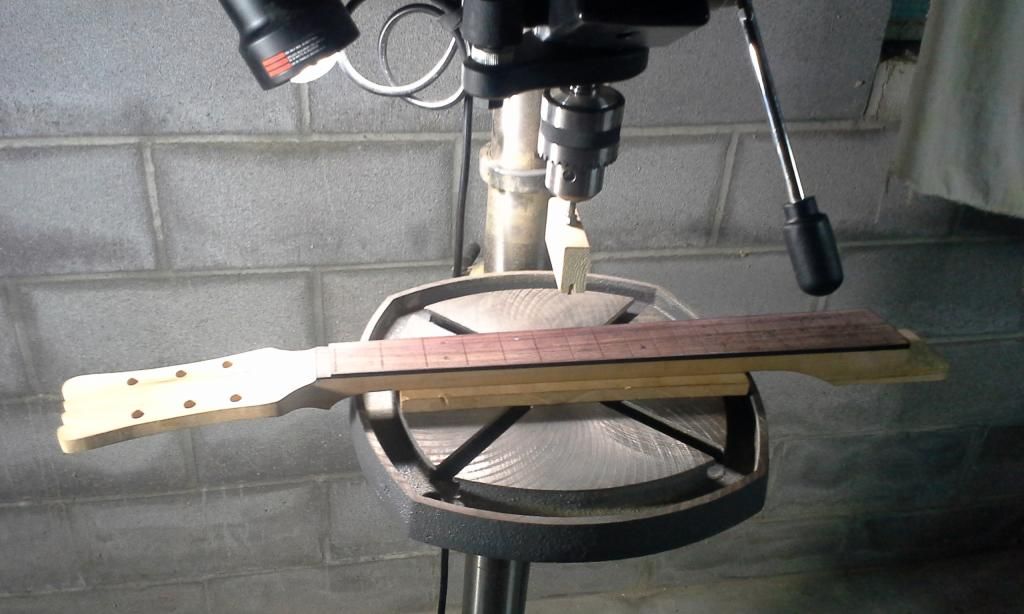

FYI: The Sanding blocks the LMI sells are not exactly 12 inches in radius they are more like 11 inches. I trust the brass fret press caul inserts from StewMac for than LMI's woodblocks and the woodblocks are off. This makes my job harder.

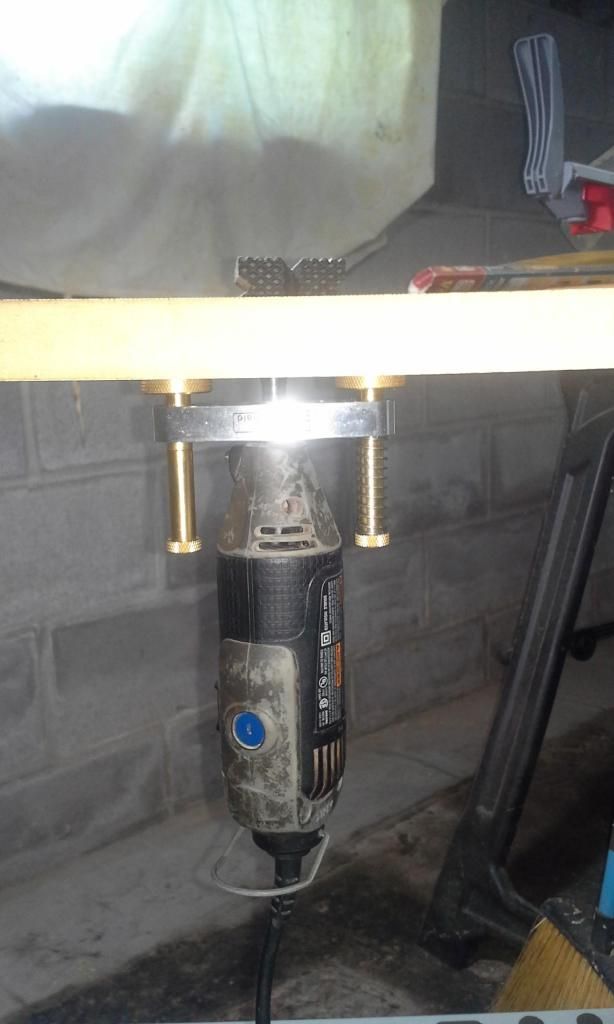

I finally made the investment into StewMac's Dremel Inlay tool. I have been making great use of it.

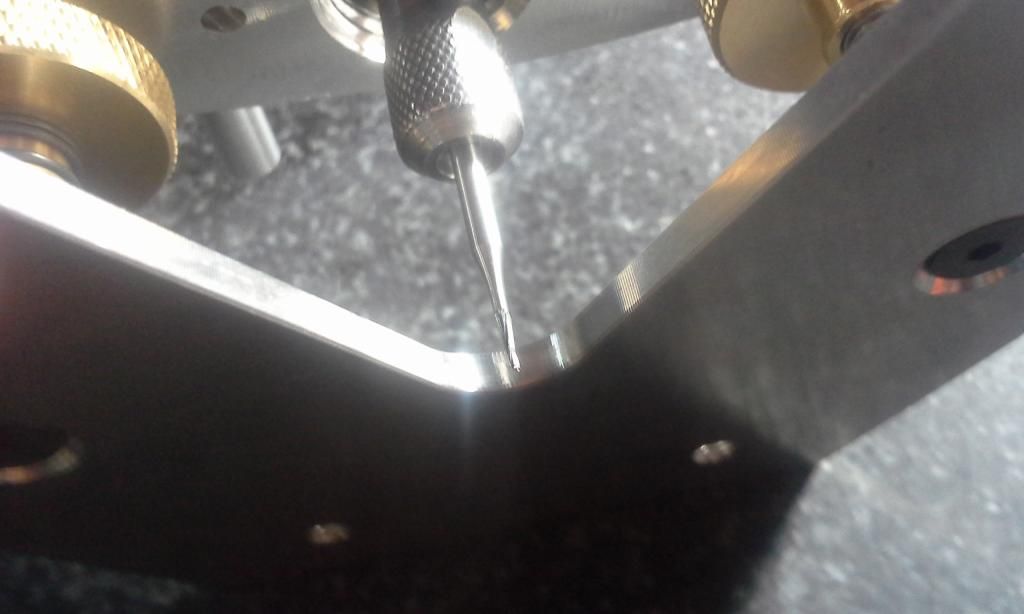

More FYI: These bits are advertised by Stewmac to be narrow enough to clean out fret Slots.... No way. Well maybe some Gigantic bass wire of some sort not with the slots I'm working with.

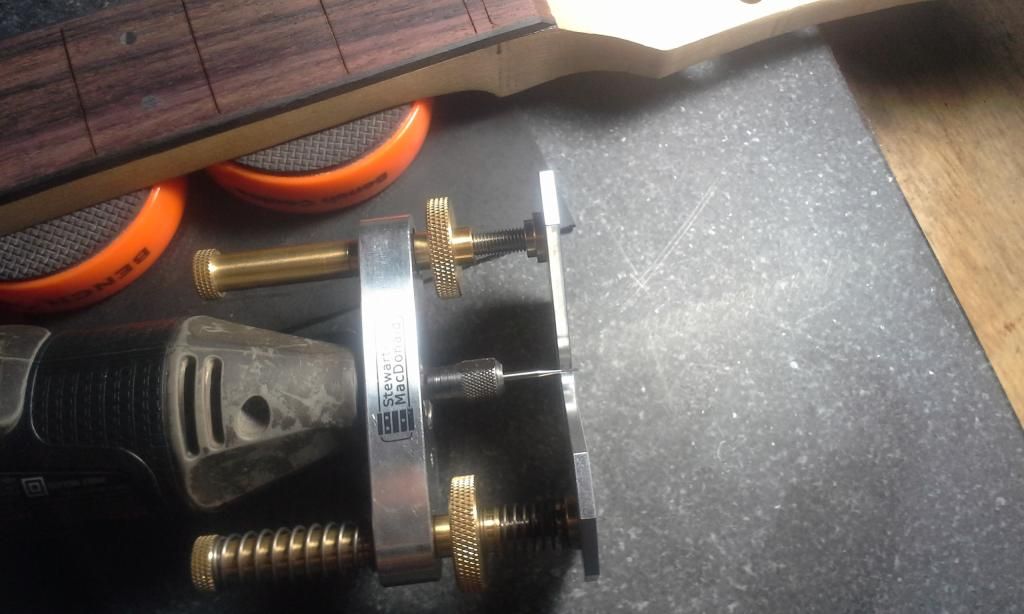

You can see the impressions left by the bit. Way too big for the slots. I quit while I has ahead and went the traditional method of deepening the slots.

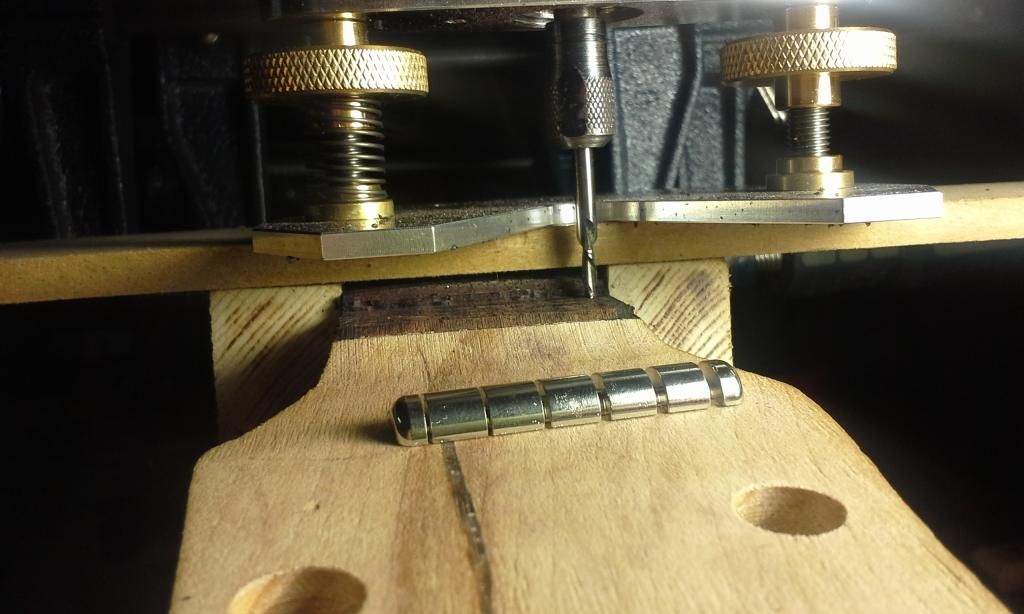

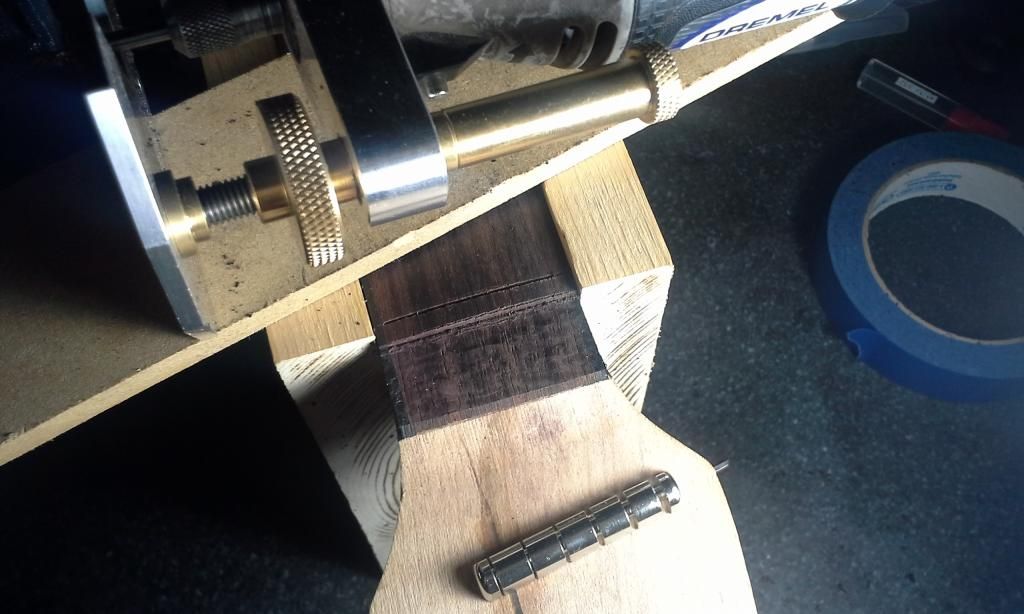

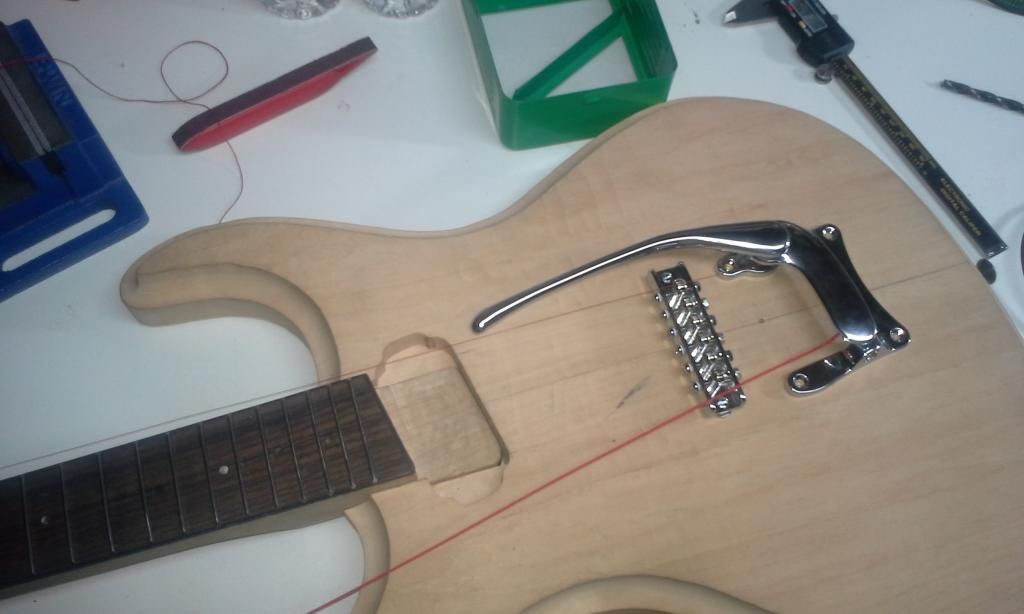

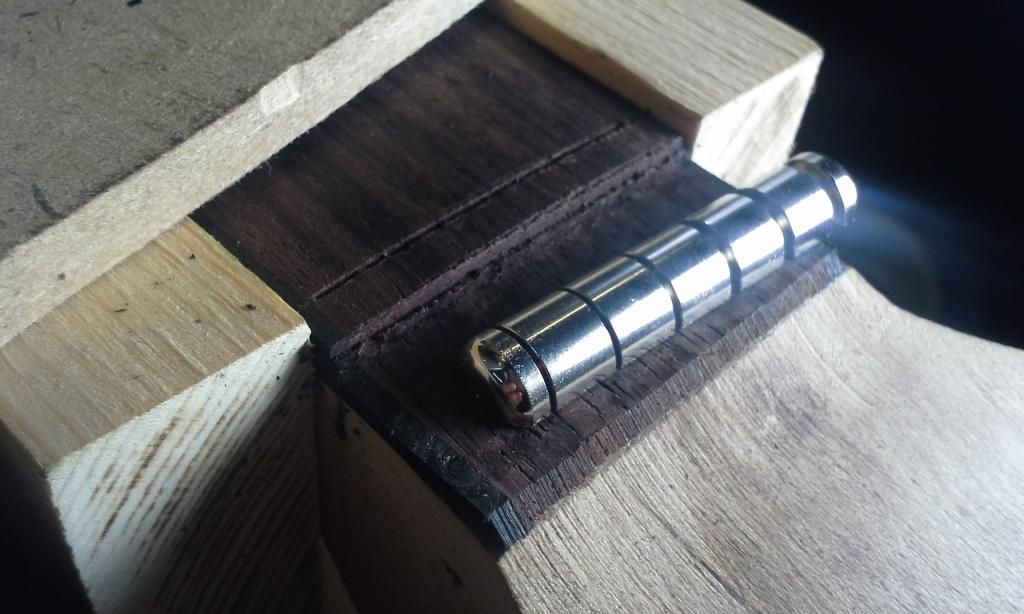

Cutting the slot for the Brass string guide from Mr. Shade. Using this Awesome Upspiral bit.

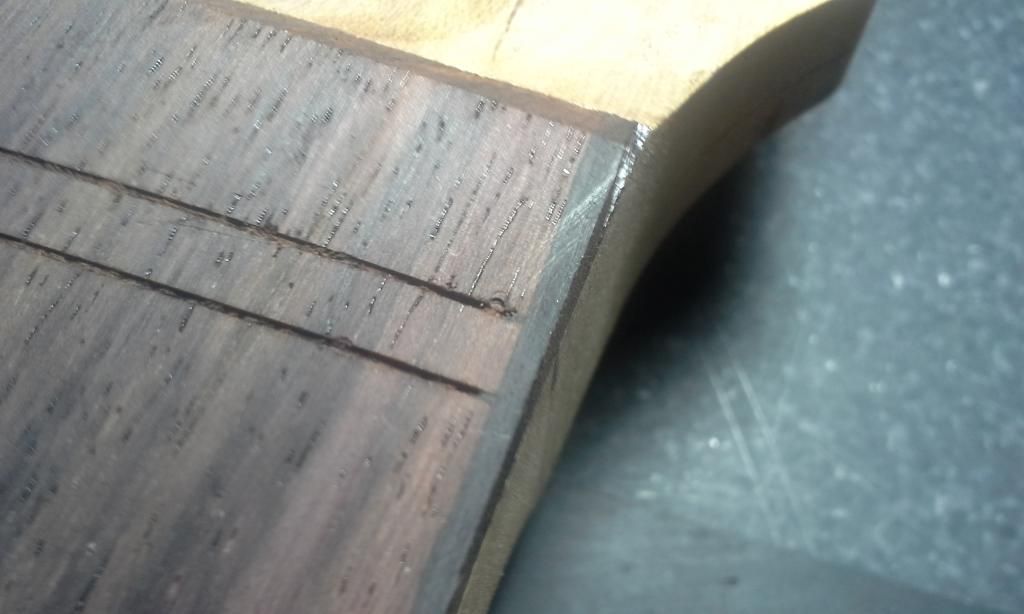

I was having trouble getting the String guide to sit flat until I used this square rifle file.







NOTE TO SELF: The String Guide and all the Frets should be moved up the neck on the next Build.

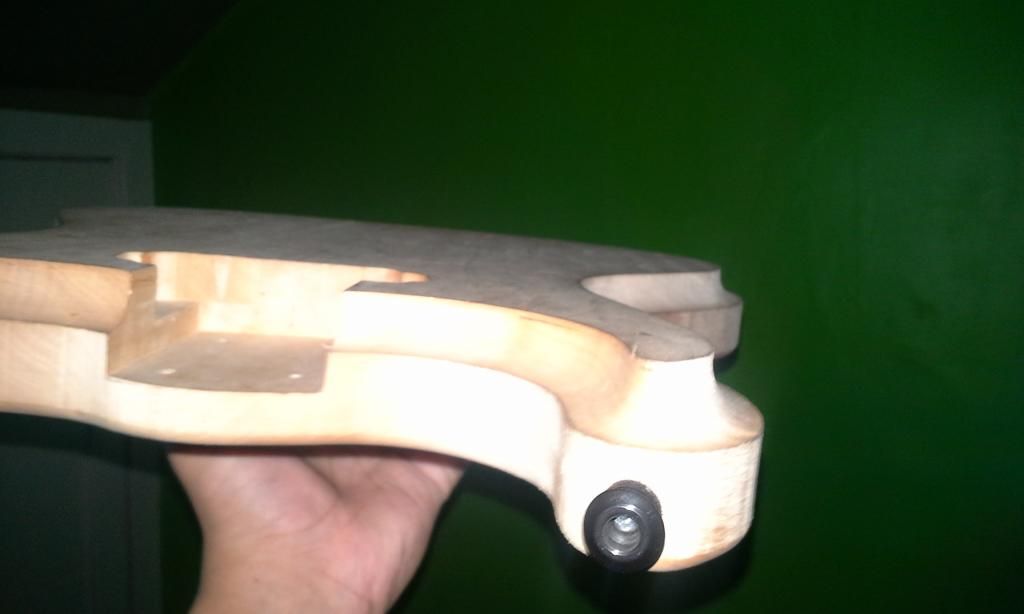

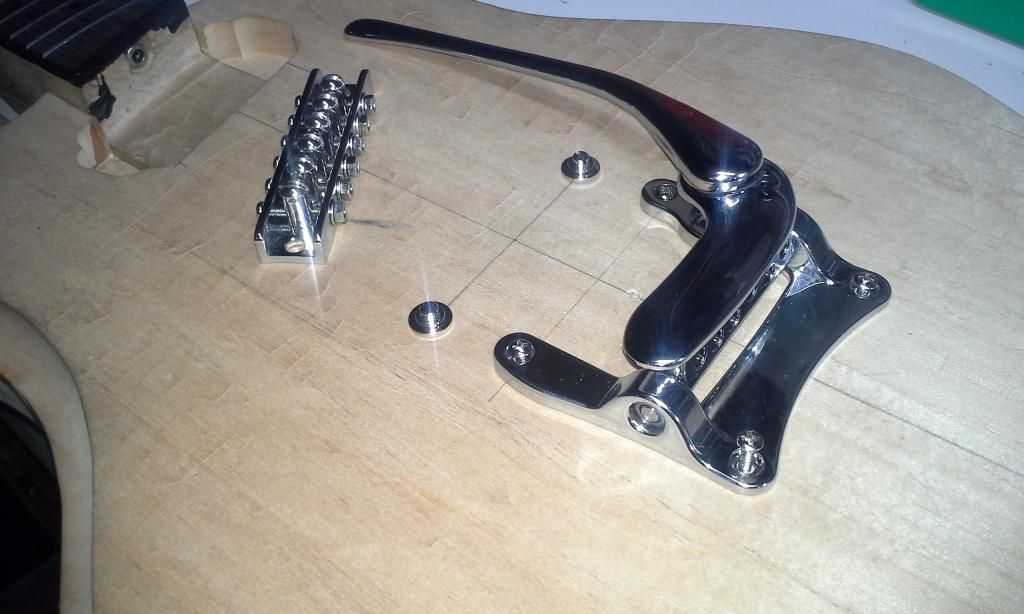

I wanted to but my StapLocks on my body temporarily, so I drilled.

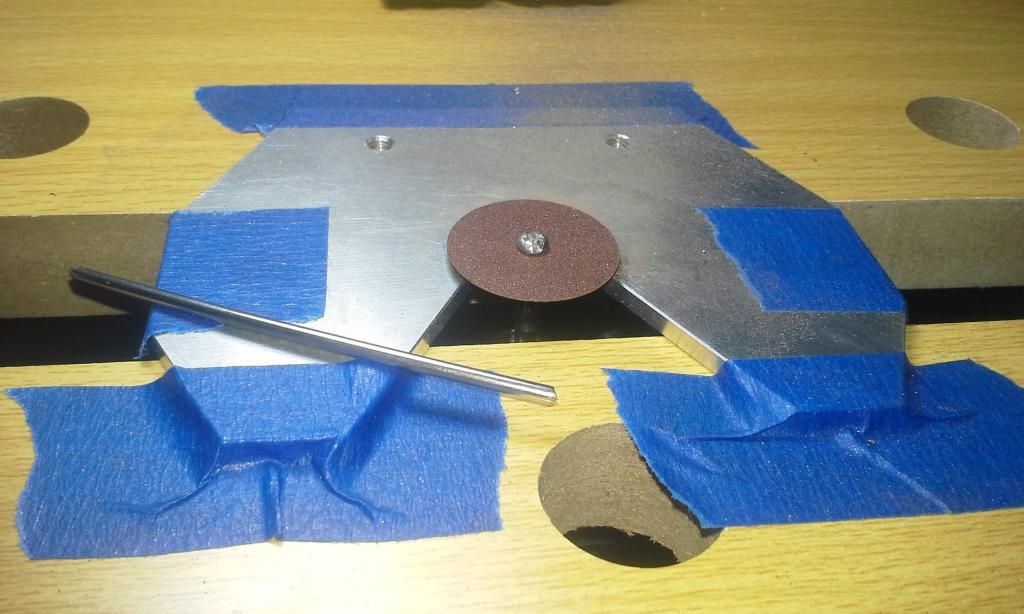

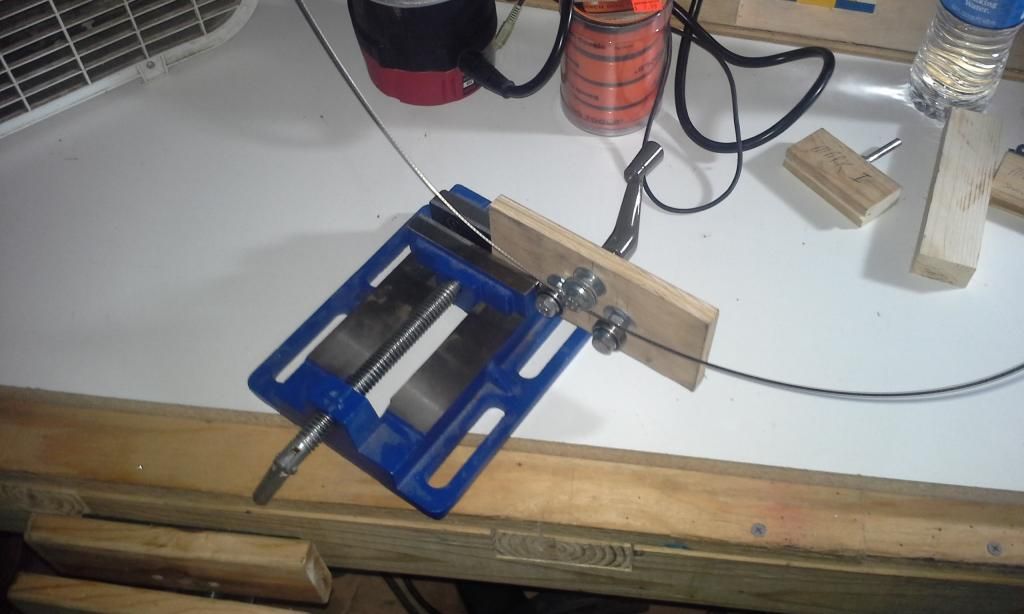

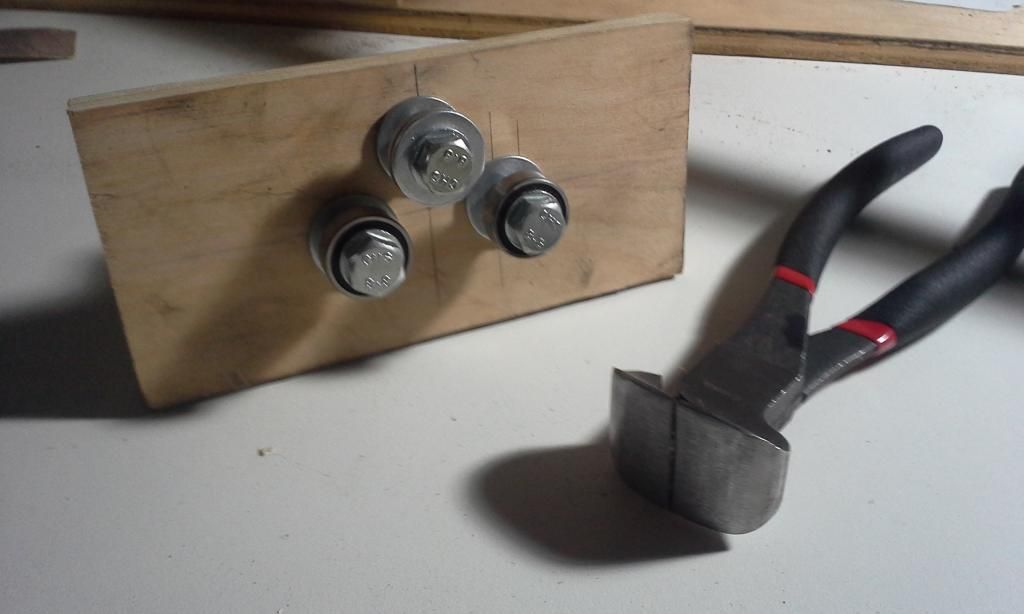

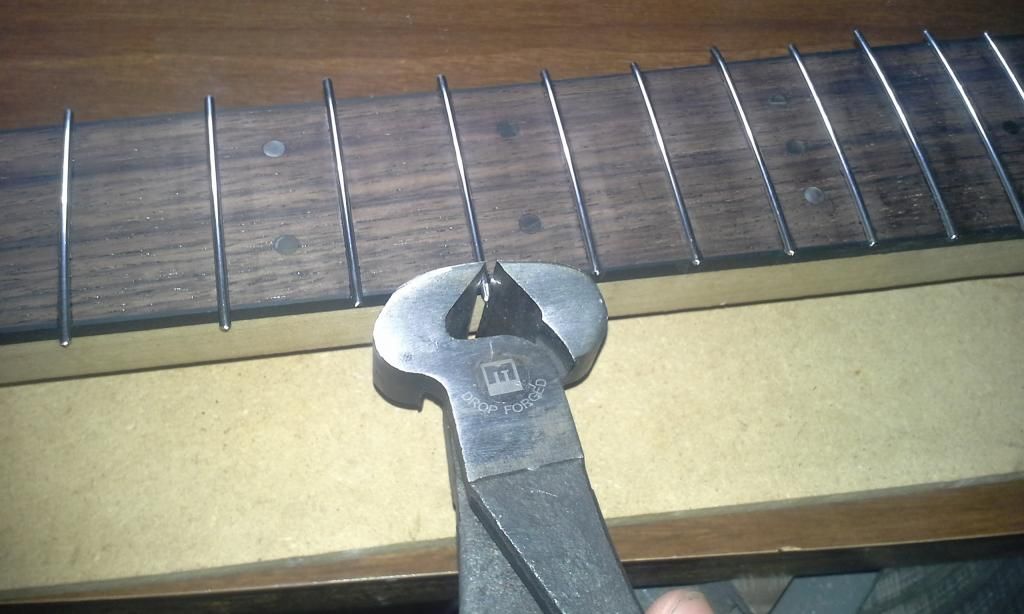

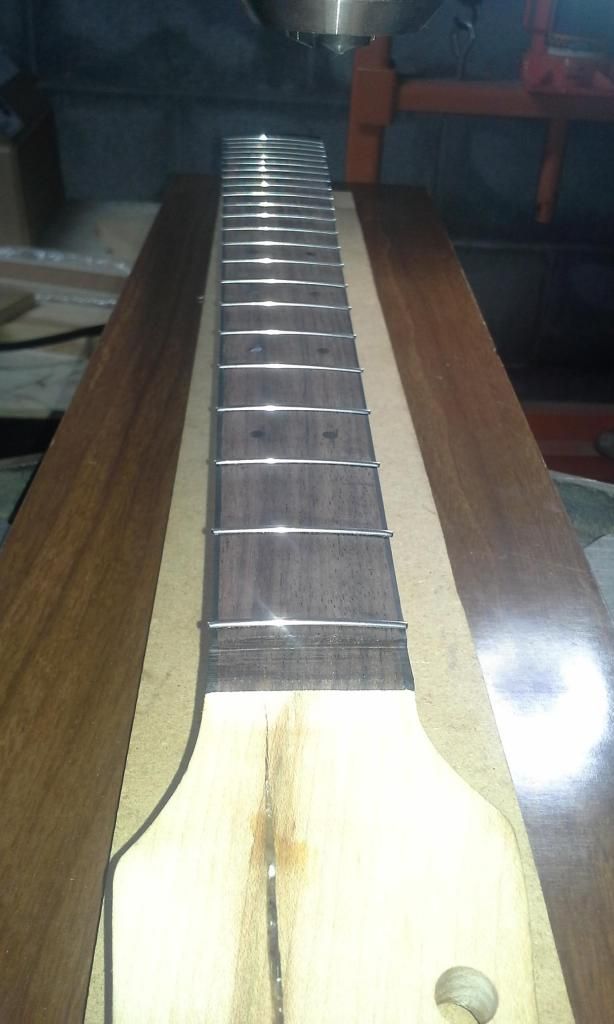

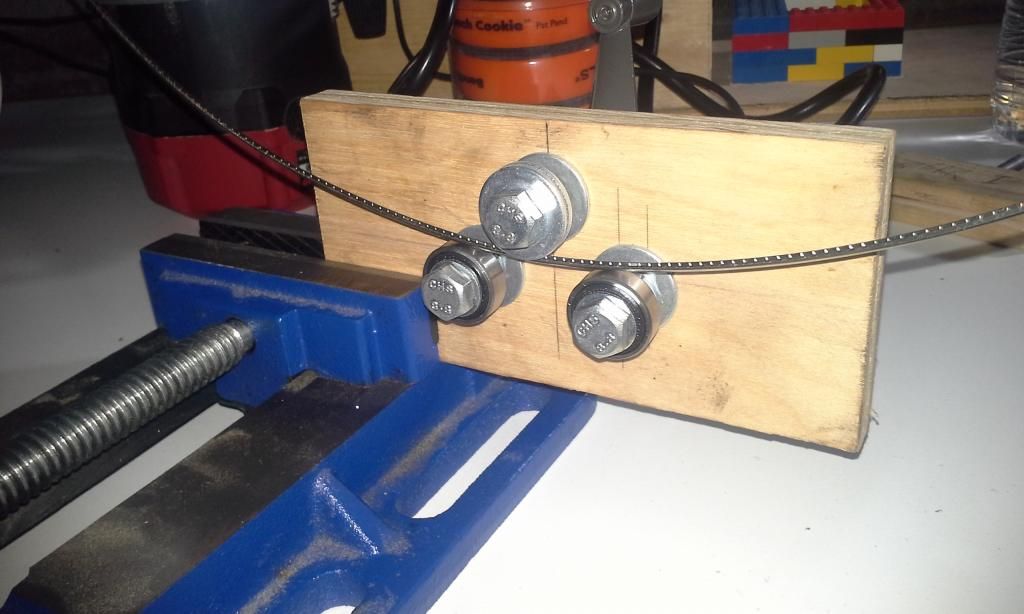

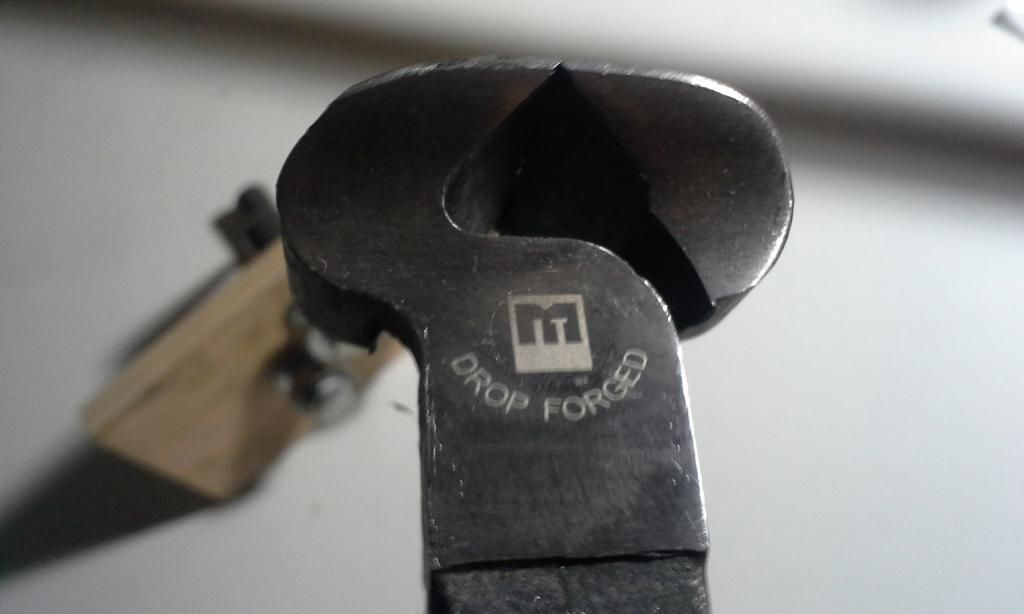

Ground some fret nippers. Put a handle on my fret bender. I know Stainless steel it rough on tools these claim to be Drop forged whatever that means. Hardened steel I guess. I have not noticed any nicks on the cutting surface yet, so that's good.

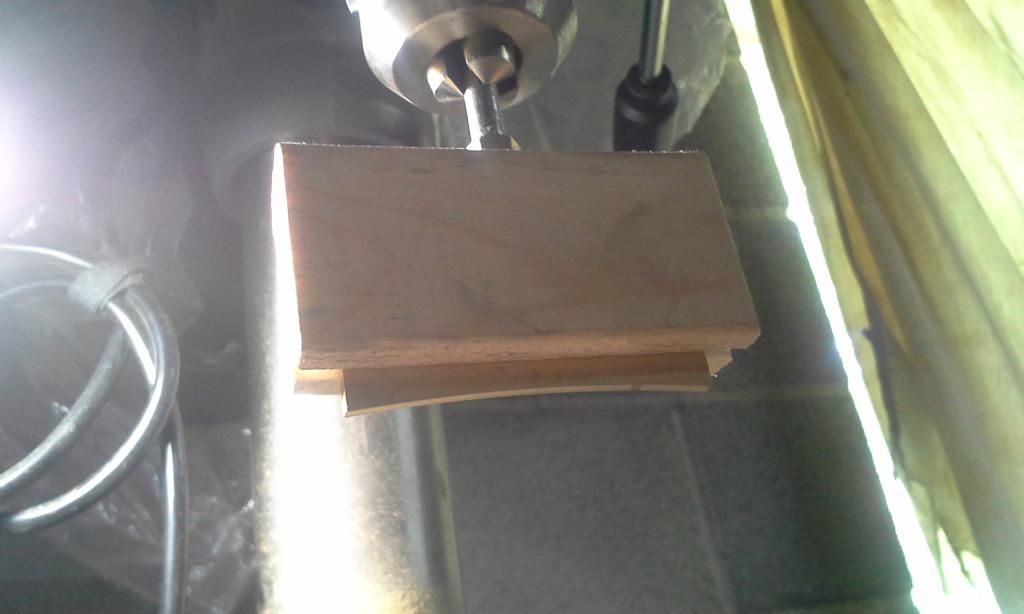

Made a fret press Caul holder. These inserts are one of the few things on StewMac reasonably priced and they are VERY useful. The caul holders however are very expensive and you can make your own. I plan to redesign mine but the simple design will do for now.

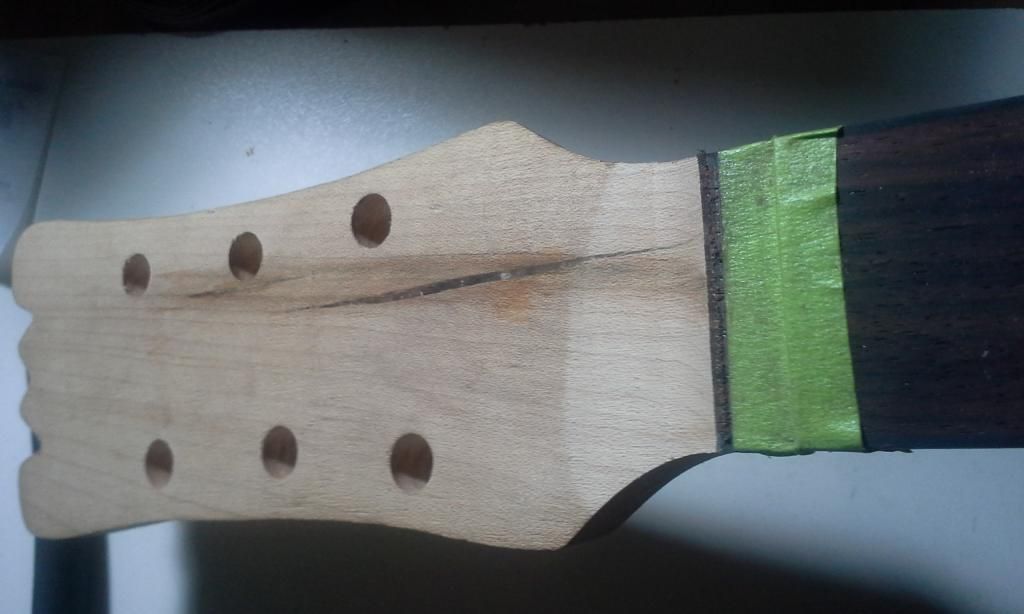

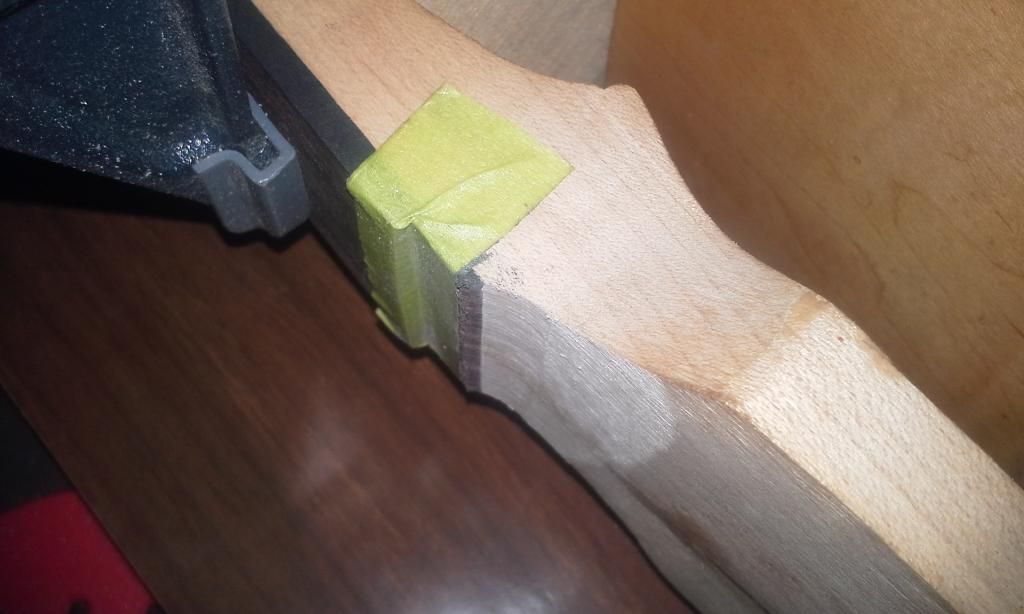

Angle for "string dropoff" was increased.

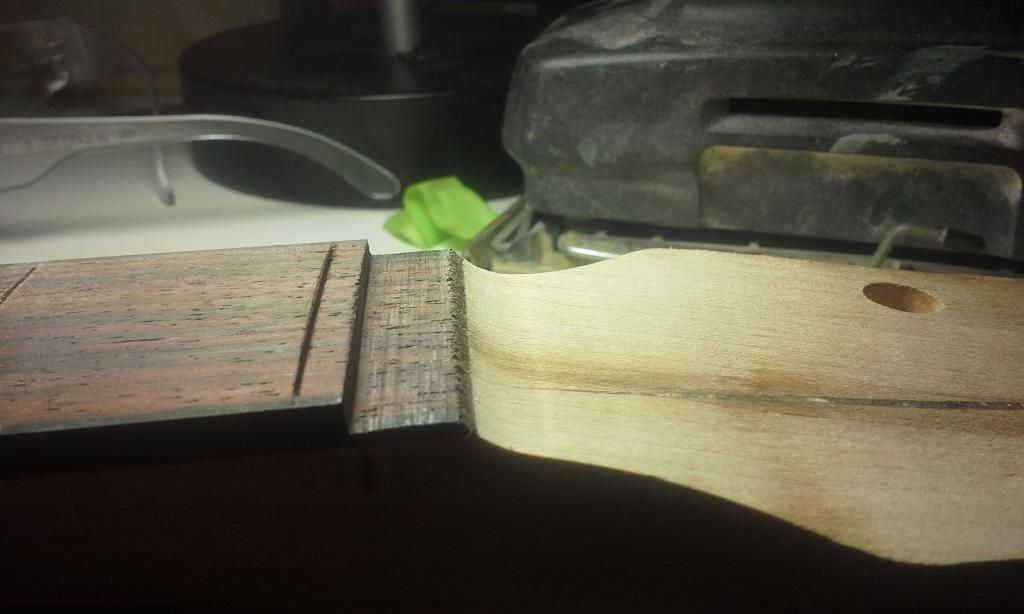

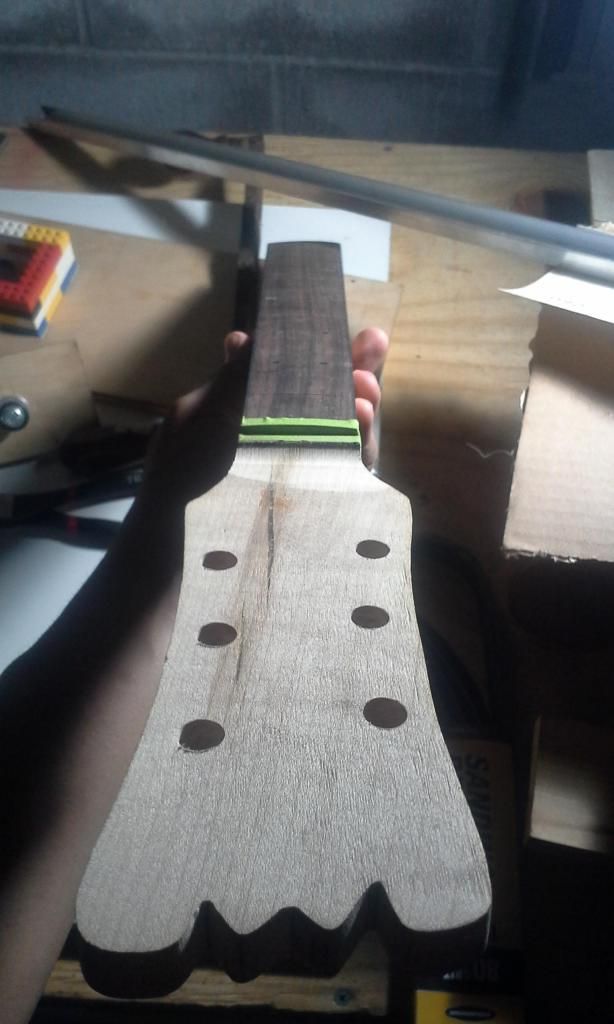

angle blended in with headstock

I'm tired. And have alot more pics and story of how I messed up and had to fix some frets on installation. Takes alot of time to upload these photos, Ill get back to it later.
"If the women don't find you handsome, they should at least find you handy."- a wise man

User avatar
cmiller0034
Top Producer
Posts: 219
Joined: Tue Oct 15, 2013 1:44 pm
Location: Louisville, Ky
Contact:

Re: Star Swirl *** 1st build

Postby cmiller0034 » Tue Aug 05, 2014 3:30 pm






wait... what?










Stainless Steel. You've met your match





Not my Idea. Props to this kid.

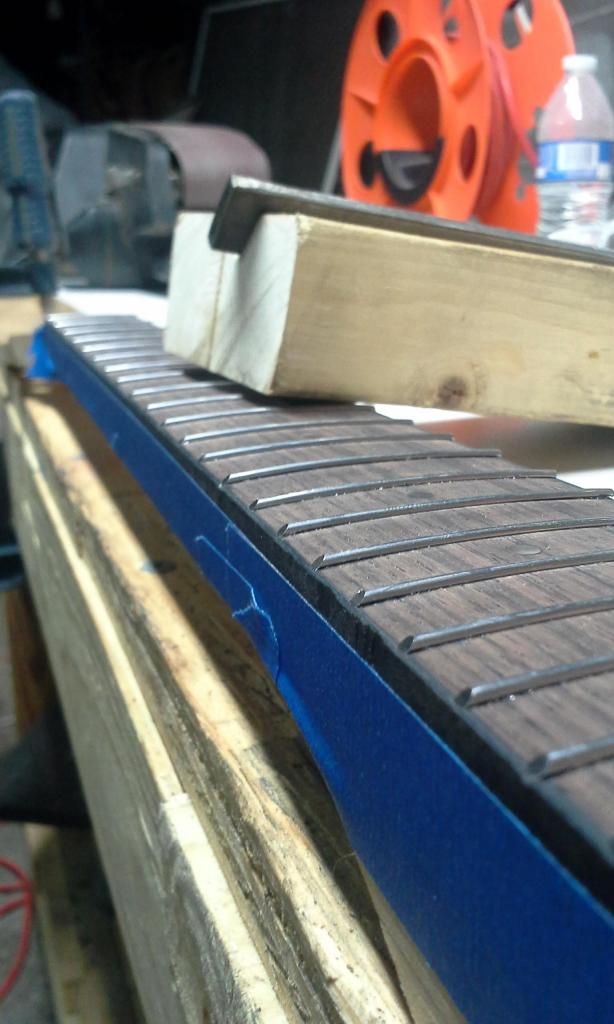

A time consuming method. But with patience comes great results.

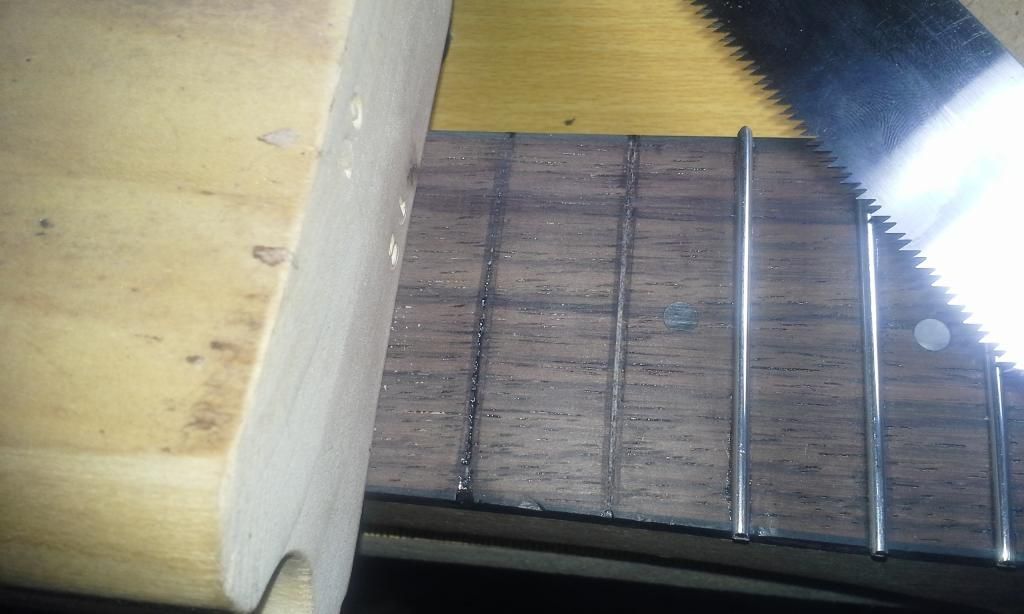

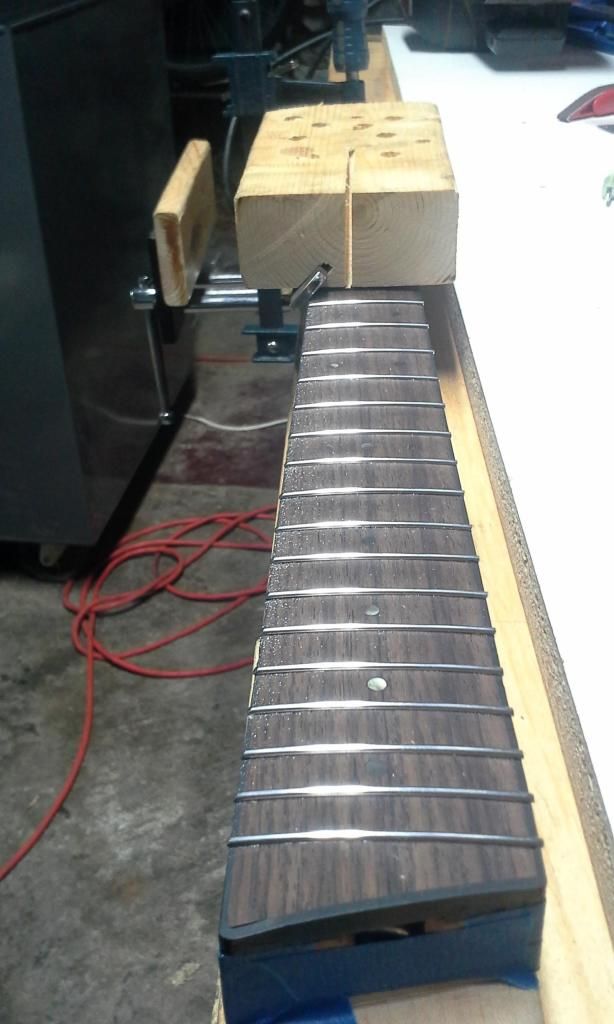

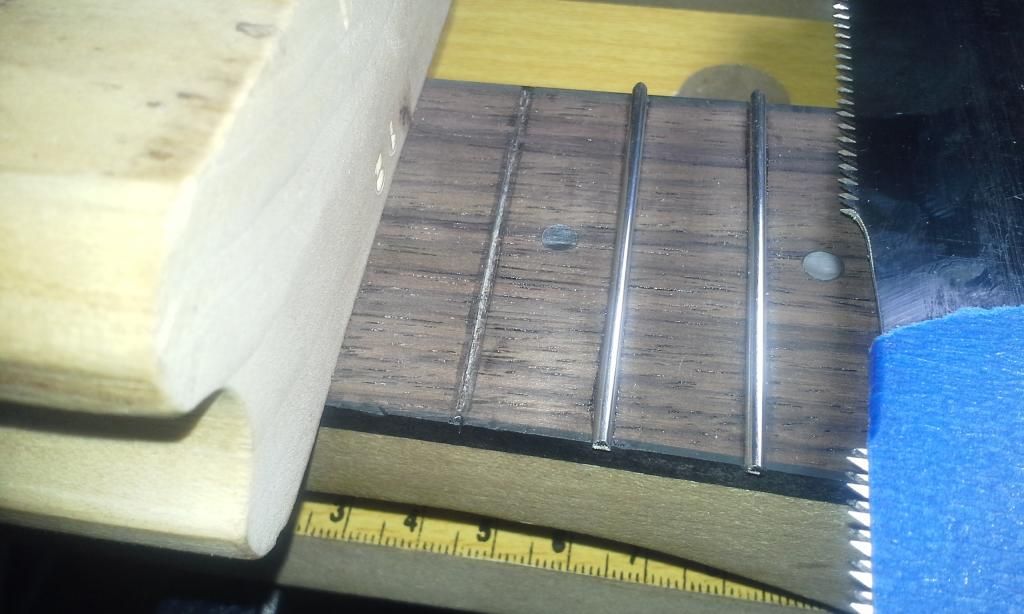

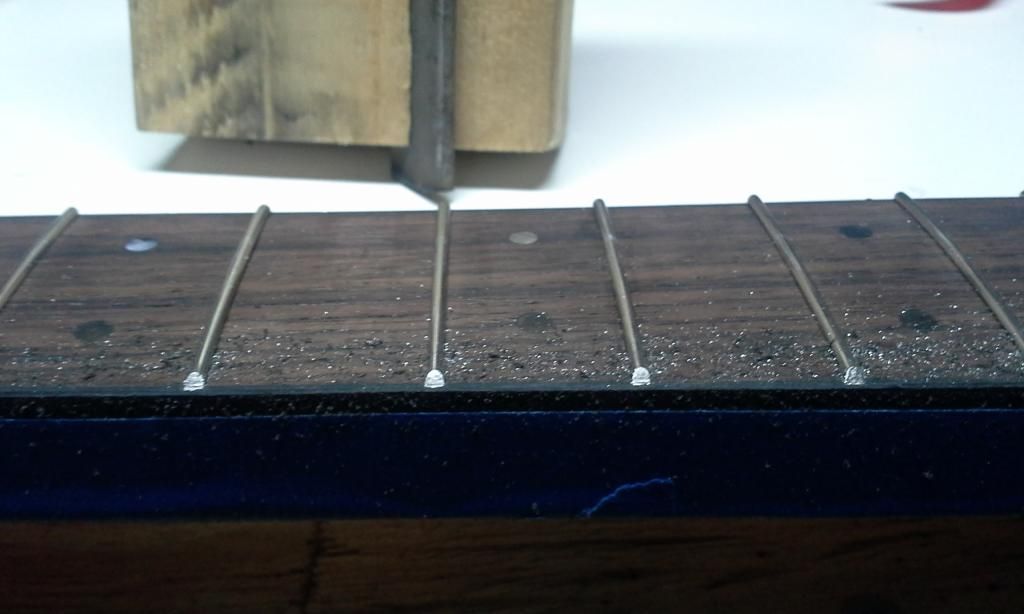

First few went in great. Then I got cocky and messed up the next 3 frets. Had to take a day and repair the slots.

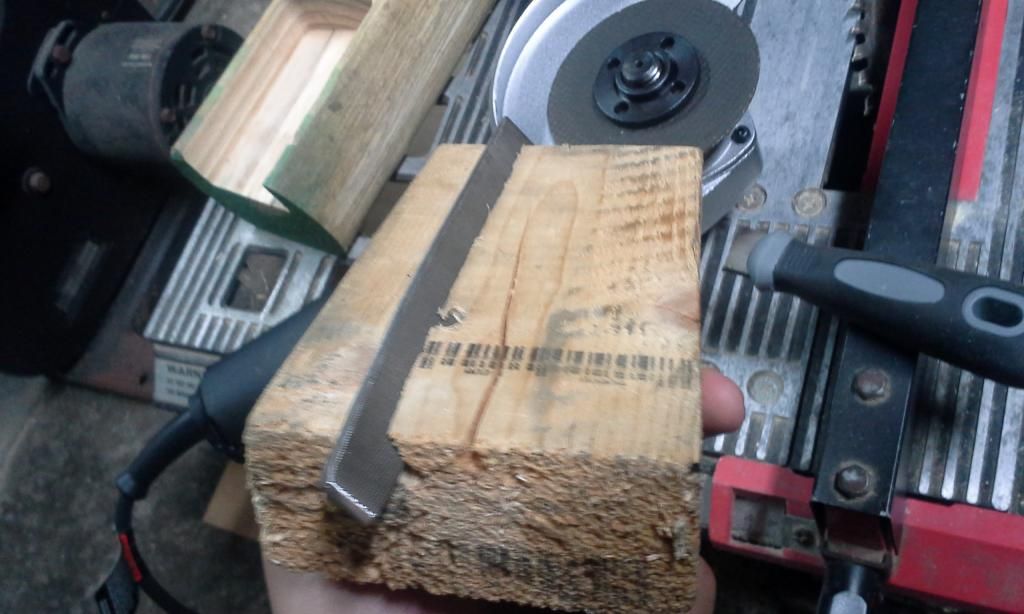

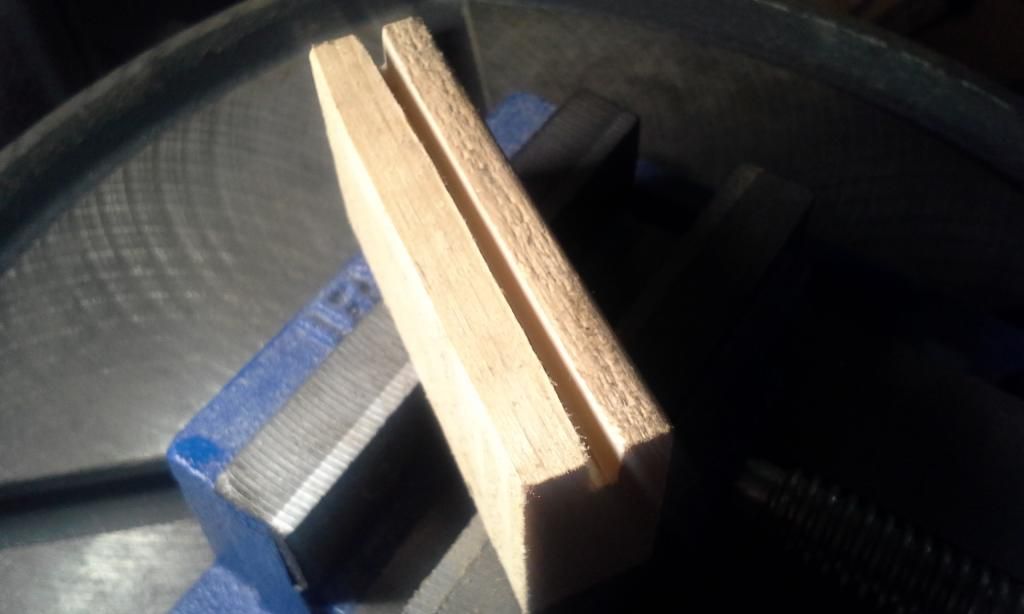

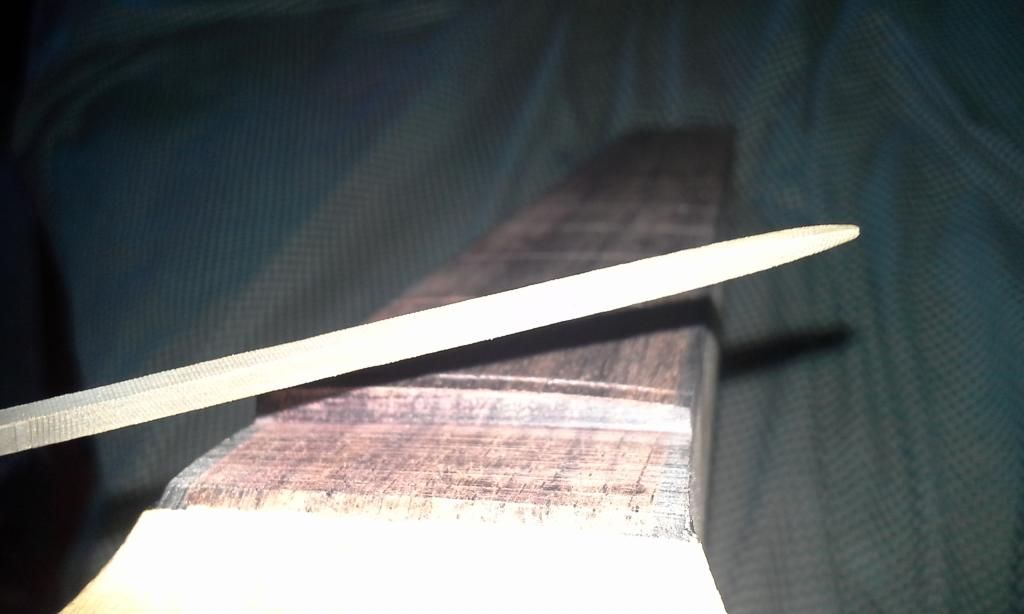

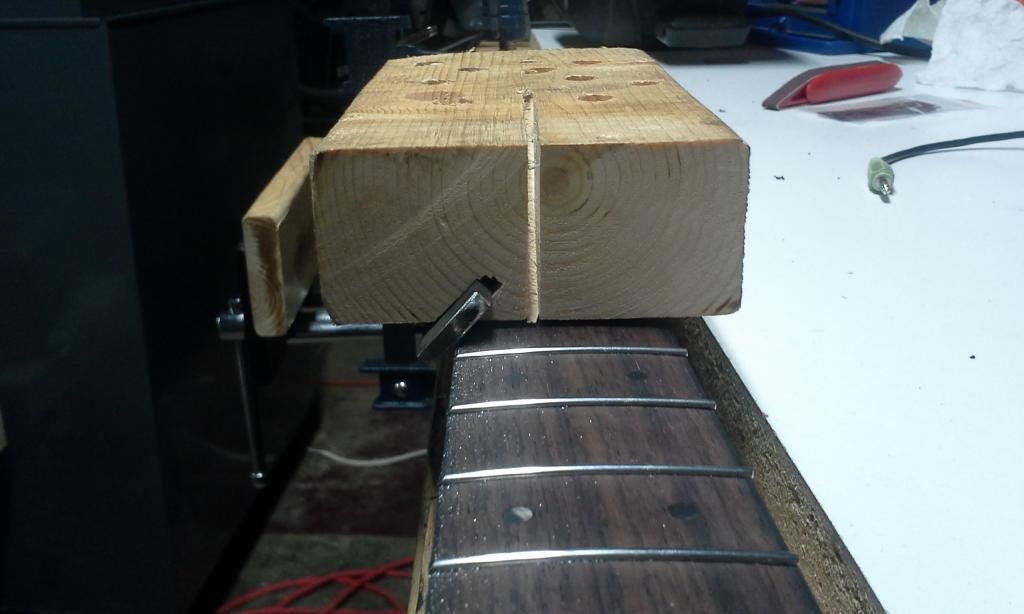

1 Cut off file
2 stick file in scrap 2x4 at 45 degrees











And so here we are. Lots of work left to do. I just wanted to test the guitar and make sure the scale length was measured right. Well, it measures at 24-1/2". (yes shorter than the already short scale 24-3/4" ) Its my first guitar, I was bound to make plenty of mistakes. :lol: The Fret spacing is correct thought, albeit a bit cramped for my fingers higher up the neck. I will make the neck a standard length on my next neck.

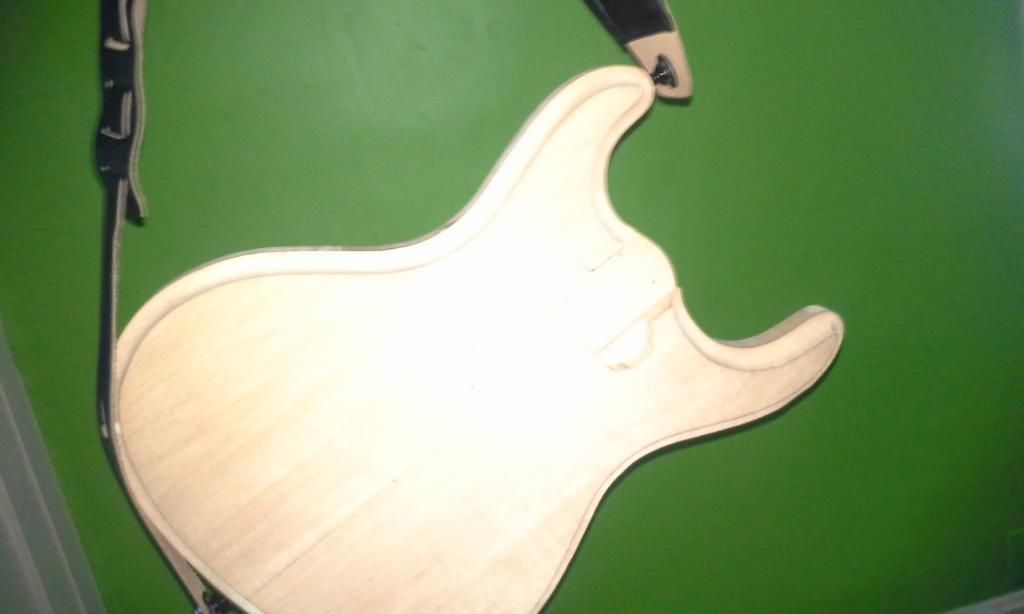

Starting to look like a guitar, huh?
"If the women don't find you handsome, they should at least find you handy."- a wise man

User avatar
BRRanger
Top Producer
Posts: 645
Joined: Tue Sep 18, 2012 10:14 am
Location: California/Central Valley
Contact:

Re: Star Swirl *** 1st build

Postby BRRanger » Wed Aug 06, 2014 5:42 am

Lookin' good!
Scott

User avatar
Greg_L
Top Producer
Posts: 473
Joined: Tue Mar 05, 2013 5:15 am
Location: Texas
Contact:

Re: Star Swirl *** 1st build

Postby Greg_L » Wed Aug 06, 2014 9:19 am

I really enjoy following your build. I'm impressed with the way you just make things and make things work. Keep it up.

User avatar
cmiller0034
Top Producer
Posts: 219
Joined: Tue Oct 15, 2013 1:44 pm
Location: Louisville, Ky
Contact:

Re: Star Swirl *** 1st build

Postby cmiller0034 » Fri Aug 15, 2014 4:54 pm

Greg_L wrote:I really enjoy following your build. I'm impressed with the way you just make things and make things work. Keep it up.


Lookin' good!
Scott


Thanks Guys I appreciate the encouragement. Sorry I haven't made any progress updates in a while, I have had to deal with an Avalanche of "Issues lately"



Warning! If you don't like to listen to people whine about their trials and tribulations please skip over the next few paragraphs.


For those following my posts you are probably aware that I own a pretty crappy car that tends to bread down and leave me stranded quite frequently. Well it finally gave up the ghost last Wednesday. I went to see Guardians of the Galaxy last weekend and just as I came off the expressway onto an 8 lane highway, when the distinct aroma of burning oil and all things unholy started to offend my nostrils. The car almost made the turning light but not quite. I sat there for about 6 or 7 minutes with irritated Mall-goers driving around me until a kind gentleman with a young boy helped me push my smoking hulk into a nearby parking lot. The car had been suffering from a mysterious oil leak, which I could not pinpoint the source. I guess filling the engine every two weeks with oil was not enough because the old heart had run dry, there were metal shavings in my oil pan... Now I need a new car. (preferably a reliable one)

So I got the old trashed Motorcycle back out of the garage. Which had been sitting there since March when I broke my hand in two places on it, and went about getting it ready for work (my job was resuming again after a summer recess and I needed SOMETHING). It had a slight oil leak of which I tried to repair by tightening up the copper crush washers on the oil pipe. Took it for a test ride to my buddy's house in the country side. Got on the off ramp of the expressway and slowed for the stop light. The bike stalled. No prob, Ill just restart it..... Nothing, the bike wouldn't turn over, I was getting nothing from the starter, everything else had power so it wasn't the battery and the fuses were fine. So after about 10 minutes of trying to push start the thing and looking it over, I decided to push the lump of iron to my friends house, he is a Mechanic and I would be able to fix my bike properly once I got to his garage. Unfortunately that required pushing a 500 pound motorcycle about 1/2 mile up and down hill on a country back road, with only 2 lanes and no shoulder with a fractured left hand in 90 degree heat.

Well, to make a long story short I left my bike over my friends house, got a ride home. Took my starter home because I needed the bike for work the day. Spent about 6 hours working through the night to rig the worn out brushes on the positive leads to work. Atleast until I could get a proper starter repair kit with new brushes trough the mail. I used some 22 gauge eyelets and sandwiched a couple of ill-fitting spare brushes from a hand grinder into my starter. Fortunately it has lasted me the workweek. My starter repair kit came through the mail today so I will be taking the thing back off the bike and properly fixing it this weekend.

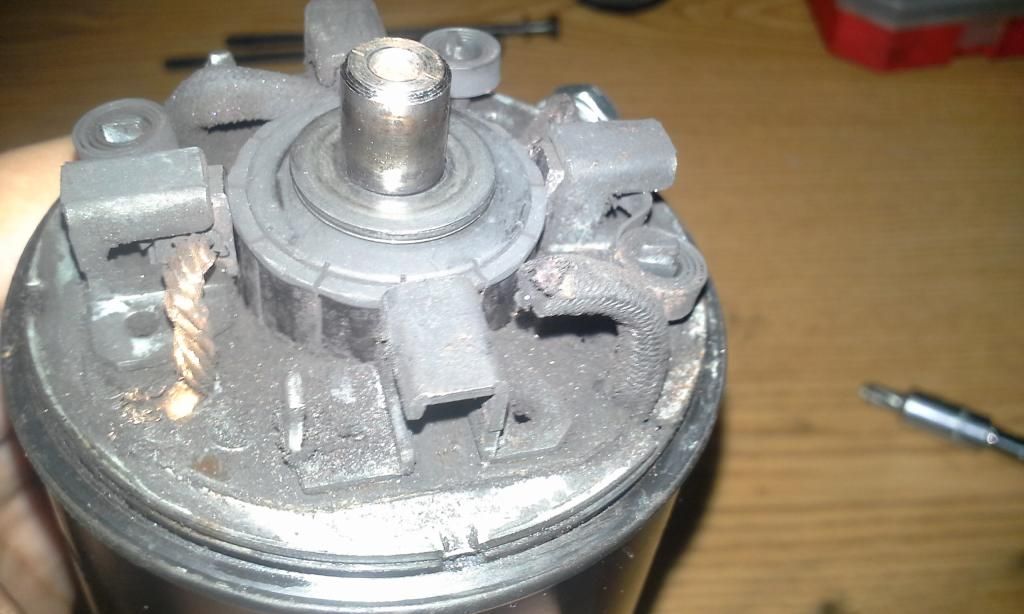

The culprit. Worn out brushes on the positive terminals.
